Complete Chimney Guide

6 Main Types · 20+ Standard Sizes · Cleaning · Repair · Sizing Guide

Masonry · Metal · Prefabricated · Kitchen · Industrial · Electric

🧹 20+ Brush Types

🔩 11+ Rod Types

🏠 30+ Total Variations

🏭 2 Use Categories

⭐ 100% Complete Guide

What Is a Chimney — and Why Does It Matter?

A chimney is one of the most critical and most overlooked components of any building. At its most basic, it is a vertical channel — built from brick, steel, or prefabricated sections — designed to carry combustion gases, smoke, heat, and airborne particles safely from a heat source to the outside atmosphere. Without a properly sized and maintained chimney, fireplaces become smoke-filled hazards; kitchen stoves leave cooking odours embedded in walls; boilers backflow toxic carbon monoxide into living spaces; and industrial facilities create uncontrolled pollution. In short, a chimney is not just an architectural feature — it is a safety system. Chimneys work on the principle of the chimney effect (also called the stack effect): hot gases are less dense than cool air, so they rise naturally. A vertical column of warm air inside the flue creates a pressure differential that draws air — and combustion gases with it — upward from the heat source below. The taller the chimney and the greater the temperature difference between the flue gas and the outside air, the stronger this draft. This is why industrial chimneys are built hundreds of feet tall, and why residential chimneys must extend a minimum height above the roofline. This guide covers everything a homeowner, builder, or facility manager needs to know about chimneys: the six main types and their specific applications, the complete range of standard chimney sizes, chimney parts and their functions, cleaning and maintenance requirements, repair costs and methods, and the sizing calculations needed to match a chimney to its heat source. Whether you are choosing a kitchen chimney for a new home, planning a chimney liner installation, or investigating a chimney fire, you will find the complete answer here.

🔥  The Chimney Effect Explained: Hot flue gases rise because heat makes them less dense than the surrounding air. This creates negative pressure at the base of the chimney — the ‘draw’ — that pulls fresh combustion air into the firebox from below. A properly sized, heated, and sealed chimney creates a continuous upward draft. Factors that improve draft: greater height, warmer flue temperature, and sealed flue (no cold air dilution). Factors that reduce draft: oversized flue, cold chimney, flue obstructions, and negative indoor air pressure from exhaust fans.

🔥  PART 1 — Types of Chimneys 6 main categories — residential, kitchen & industrial

Each chimney type represents a specific engineering solution for a given combination of heat output, installation context, fuel type, and budget. The masonry chimney delivers permanent, durable performance in a traditional home. The metal factory-built chimney addresses the installation speed and cost challenges in modern construction. The kitchen chimney solves the cooking odour and grease-vapour problem in modern kitchens. Understanding which type fits which application is the starting point of every chimney decision.

01 🧱

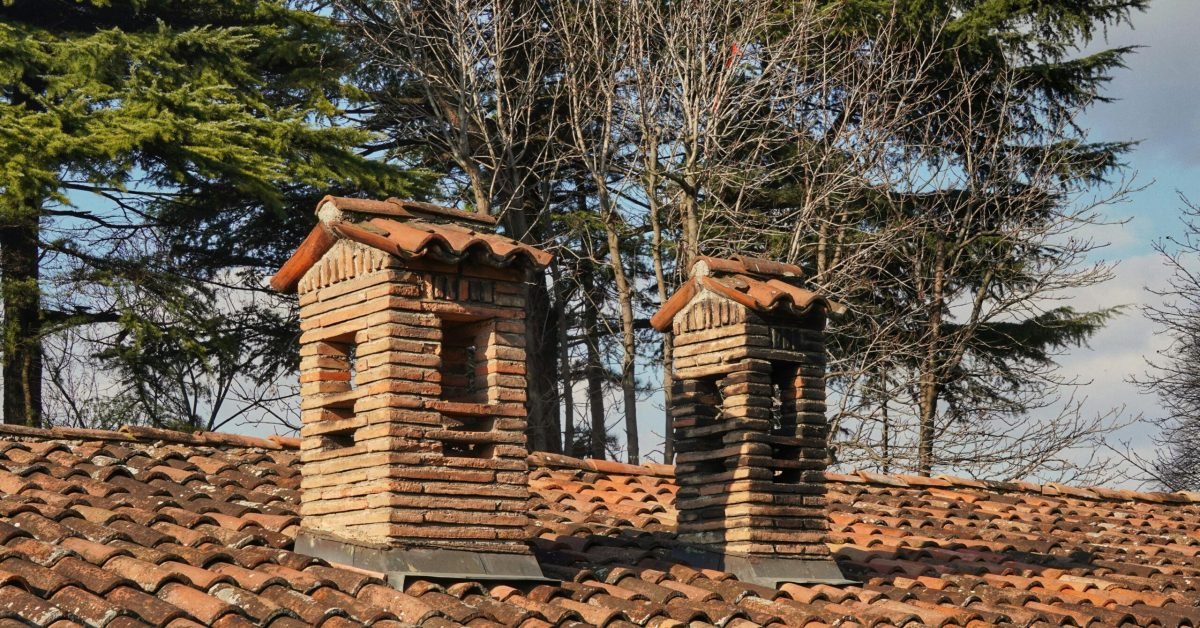

Masonry Chimney Material: Fired brick, natural stone, concrete block, or a combination — bonded with mortar and often lined with clay tile or stainless steel Installation: Requires professional masonry construction — a skilled crew, scaffolding, and several days of work. Not a DIY project for most homeowners Best Used For: Traditional wood-burning fireplaces, coal-burning stoves, oil boilers, and any heat source in a heritage or period property where visual character matters ✅ Pros: Extreme durability (lifespan 50–100+ years with maintenance); excellent thermal mass that stores and radiates heat; visual appeal; increases property value ⚠️ Cons: Highest installation cost of all chimney types; heavy (requires a dedicated foundation); requires professional repointing and crown repair every 20–30 years; susceptible to freeze-thaw cracking in harsh climates

02 ⚙️

Metal Chimney (Factory-Built) Material: Double-wall or triple-wall stainless steel construction — inner liner, insulation layer, outer casing — available in Class A (all-fuel) and B-vent (gas-only) ratings Installation: Significantly faster than masonry — a prefabricated metal chimney system can typically be installed in one to two days. Compatible with standard framing and fireplace insert installations Best Used For: Modern homes with factory-built fireplace inserts, gas appliances, pellet stoves, and any application requiring a cost-effective chimney without the weight and cost of masonry ✅ Pros: Lower installation cost than masonry; lightweight (no dedicated foundation needed); consistent factory-controlled quality; available in class A (high temperature) and lower-temperature configurations ⚠️ Cons: Shorter lifespan than masonry (25–30 years for quality systems); less visual character; requires periodic inspection of the metal sections and connections; condensation can accelerate corrosion in lower-temperature applications

03 🔩

Prefabricated Chimney Material: Sections of pre-engineered metal or lightweight concrete components designed to assemble rapidly on site — typically with interlocking push-fit or twist-lock connections Installation: Very fast — prefabricated chimney sections can be assembled by a competent installer in hours rather than days. Some systems are designed for homeowner installation with wood stoves Best Used For: Wood stoves, pellet stoves, and free-standing heating appliances — any application where installation speed, lower cost, and the ability to relocate the system easily are priorities ✅ Pros: Fastest installation time; lowest material cost; easily relocated if the stove is moved; widely available at home improvement retailers; compatible with chimney cleaning rod kits ⚠️ Cons: Not suitable for high-output open fireplaces; requires careful section alignment to maintain airtight joints; quality varies significantly between manufacturers; verify clearance ratings carefully

04 🍳

Kitchen Chimney (Range Hood) Material: Stainless steel housing with aluminium mesh or baffle filters, carbon filters for recirculating models, and a centrifugal or axial fan motor — available in ducted and ductless (recirculating) configurations Installation: Surface-mounted above the cooking range with a duct run to the exterior (ducted) or fully self-contained with carbon filter recirculation (ductless/electric). A competent DIYer can install both configurations Best Used For: Residential kitchens of all sizes — removes cooking odours, grease vapours, smoke, steam, and carbon monoxide produced by gas cooking. Required by building codes in many jurisdictions for enclosed kitchens ✅ Pros: Dramatically improves kitchen air quality and reduces grease deposition on surfaces; ducted models provide genuine extraction; modern designs are a kitchen aesthetic feature as much as a functional appliance ⚠️ Cons: Ducted models require an external vent run — not always feasible in apartments; ductless models recirculate air (less effective at moisture removal); filters require regular cleaning; motor noise is a purchase consideration

05 🏭

Industrial Chimney (Stack) Material: Reinforced concrete (most common for large stacks), structural steel, or brick with acid-resistant lining — designed and engineered as a major structure rather than a building component Installation: Requires specialist structural engineering, heavy plant for construction, and regulatory approval. Construction timelines are measured in weeks to months, not days Best Used For: Power stations, cement works, steel mills, chemical plants, incinerators, and any industrial process generating large volumes of hot combustion gases, steam, or chemical emissions at high continuous output ✅ Pros: Can handle massive gas volumes and temperatures; provides the height needed for effective atmospheric dispersion of emissions; engineered for specific chemical and temperature conditions ⚠️ Cons: Enormously expensive (large industrial stacks cost millions to construct); specialised maintenance requirements; subject to strict environmental regulations; chimney removal cost for decommissioned industrial stacks is also substantial

06 ⚡

Electric Chimney Material: Motor, housing, and filter system only — no flue pipe or combustion venting required because there is no combustion. Features baffle or mesh filters for grease and activated carbon filters for odour. May include an auto-clean function Installation: Plug-in installation directly above the cooking range — the simplest installation of any kitchen chimney type. No ductwork, no wall penetration, no planning permission required in most cases Best Used For: Apartments, rental properties, and kitchens where external ducting is impractical or prohibited — any situation where a standard ducted kitchen chimney cannot be installed ✅ Pros: No duct installation required; works in any kitchen regardless of external wall access; lowest installation cost; many modern designs are visually sophisticated stainless steel features ⚠️ Cons: Less effective at moisture removal than ducted models (all air is recirculated); carbon filters require replacement every 3–6 months; motor lifespan may be shorter than ducted units; not appropriate for high-output gas cooking

Chimney Types — Quick Comparison

Chimney Type	Lifespan	Best Application
Masonry (Brick/Stone)	50–100+ years	Traditional homes, open fireplaces
Metal Factory-Built	25–35 years	Modern homes, fireplace inserts
Prefabricated	15–25 years	Wood stoves, pellet stoves
Kitchen / Range Hood	10–20 years	Residential cooking extraction
Industrial Stack	30–60 years	Power plants, factories
Electric / Ductless	10–15 years	Apartments, ductless kitchens

Parts of a Chimney — Complete Anatomy

Understanding the parts of a chimney is essential for maintenance, repair, and communication with contractors. Each component serves a specific protective or functional role — and failure of any single component can compromise the safety and efficiency of the entire system. The parts described below primarily apply to a traditional masonry or lined-metal chimney on a residential property.

Chimney Part	Function, Location & Maintenance Notes
Firebox	The combustion chamber where the fire burns. Built from refractory brick rated for direct flame contact. The firebox should be inspected annually for cracked refractory panels — cracked firebox brick allows dangerous heat transfer to the surrounding structure.
Smoke Chamber	The tapering transition zone between the firebox and the flue. Directs combustion gases upward into the flue. The smoke chamber walls should be smooth; rough mortar joints or deterioration can cause turbulence that reduces draft.
Damper (Chimney Damper)	A movable metal plate at the throat of the firebox that controls airflow. Open when the fireplace is in use to allow a draft; closed when not in use to prevent heat loss and backdraft. Chimney dampers corrode over time — replacement is a common chimney repair task.
Chimney Flue	The interior channel through which combustion gases travel. Lined with clay tile, stainless steel liner, or cast-in-place refractory material. Flue sizing is critical — too small causes poor draft; too large allows heat loss and creosote condensation. A cracked chimney flue is a serious safety hazard.
Chimney Liner	The protective inner lining of the flue — clay tile (original in most brick chimneys), stainless steel chimney liner (for relining), or cast-in-place (for irregular flues). The liner protects the surrounding masonry from heat and combustion gases and contains any chimney fire. Chimney liner installation, or chimney relining, is required when the original liner is cracked or when the appliance is replaced.
Smoke Shelf	A horizontal ledge at the base of the smoke chamber that prevents rain, debris, and downdrafts from going directly into the fire. Accumulated creosote on the smoke shelf is a fire hazard and must be cleaned during annual sweeping.
Chimney Crown	The concrete or mortar cap that covers the top of the chimney, covering the gap between the outer chimney walls and the flue liner. Prevents water entry. The chimney crown is one of the most commonly damaged components — a cracked chimney crown allows water to enter the masonry and cause freeze-thaw damage. Fix chimney crown cracks early with chimney crown sealer before replacement is needed.
Chimney Cap (Spark Arrestor)	A metal cap with a wire mesh screen that fits over the flue opening at the top of the chimney. Functions as a chimney spark arrestor (prevents sparks from landing on the roof), keeps out rain, and excludes birds and animals. Stainless steel, copper, and ss are the main material options for chimney caps. Attaching the chimney cap correctly over the liner termination is critical — an improperly fitted cap falls off in the wind.
Chimney Flashing	Sheet metal (typically aluminium, copper, or ggalvanizedsteel) is sealed at the junction of the chimney and the roof surface. Prevents rainwater from entering where the chimney penetrates the roof. Chimney flashing repair cost is among the most common chimney-related maintenance expenses. Chimney-to-siding flashing and metal-roof chimney flashing are sspecializedapplications for non-standard roof surfaces.
Chimney Chase	The framed enclosure around a factory-built metal chimney — the visible external structure that appears to be masonry but houses a metal flue pipe inside. The chimney chase cover (also called a chimney chase cap) sits at the top of the chase to prevent water entry. A damaged chimney chase cover is a major source of water entry.
Chimney Cricket / Saddle	A peaked ridge structure built on the high side of the chimney where it meets the roof, designed to deflect rainwater and snow away from the chimney-roof junction. Required by code for chimneys wider than 30 inches. What is a chimney cricket? It is this water-deflection ridge — named for its peaked shape.
Chimney Block / Surround	The decorative framing around the fireplace opening in the interior wall is typically manufactured in limestone, marble, slate, or painted wood. Not a functional component, but it defines the aesthetic character of the fireplace surround.

⚠️  Critical Safety Warning — Chimney Fire: A chimney fire occurs when accumulated creosote deposits in the flue ignite. Creosote is a dark, flammable byproduct of wood combustion that coats the flue walls over time. A chimney fire burns at temperatures up to 2,000°F — hot enough to crack the liner, ignite surrounding structure, and potentially destroy the house. Prevention: annual professional chimney sweep and inspection; burn only dry, seasoned wood (never green or wet wood, which produces far more creosote). Warning signs of a chimney fire: loud cracking/popping noise from the flue, dense black smoke from the chimney, visible flames at the chimney top. If a chimney fire occurs, close the fireplace damper, call emergency services, and evacuate.

📐  PART 2 — Chimney Sizes — Complete Reference Residential, metal, kitchen & industrial standard dimensions

Chimney sizing is not a matter of aesthetics or preference — it is an engineering calculation with direct safety implications. An undersized flue restricts the flow of combustion gases, leading to backdrafts and dangerous carbon monoxide buildup. An oversized flue fails to maintain the draft temperature needed to carry gases upward efficiently, leading to creosote condensation, moisture problems, and smoky fireplaces. Every heat source — from a wood stove to an industrial boiler — has a calculated flue size requirement that the chimney must match.

Residential Masonry Chimney Sizes

🏠  Height Requirements • Minimum 3 ft above the highest point of roof penetration • Minimum 2 ft above any roof surface within 10 ft horizontally • Typical residential total height: 15–30 feet • Single-story home: approx. 15–20 feet • Two-story home: approx. 20–28 feet

📦  Standard Flue Tile Sizes • 8″ × 8″ — small fireplaces up to 500 sq in opening • 8″ × 12″ — medium fireplaces 500–700 sq in opening • 12″ × 12″ — larger fireplaces 700–1000 sq in opening • 12″ × 16″ — large fireplaces with high-output stoves • 16″ × 16″ — oversized fireplaces or dual-flue chimneys • Round liners: 6″, 7″, 8″, 10″, 12″ diameter common

Metal / Prefabricated Chimney Sizes

⚙️  Standard Pipe Diameters • 6″ — small wood stoves and pellet stoves • 7″ — medium wood stoves • 8″ — larger wood stoves and small fireplace inserts • 10″ — medium fireplace inserts and boiler flues • 12″ — large fireplaces and higher-output boilers • 14″ — commercial/high-output applications

📏  Height Standards • Minimum 3 ft above roof penetration • Minimum 2 ft above any roof within 10 ft • Typical single-story install: 10–15 feet • Typical two-story install: 18–25 feet • Class A pipe: rated for all fuel types, including wood • B-vent: gas appliances only (not solid fuel)

Kitchen Chimney (Range Hood) Sizes

🍳  Standard Width Options • 60 cm (24 inch) — for 2-burner hobs • 75 cm (30 inch) — for standard 4-burner gas hobs • 90 cm (36 inch) — the most popular UK/EU standard size • 100 cm (40 inch) — wide range hobs • 120 cm (48 inch) — professional / range cooker size • Note: chimney width should match or exceed hob width

💨  Suction Power (CFM / m³/hr) • 700 m³/hr — adequate for light cooking • 900 m³/hr — recommended for most gas hobs • 1000–1200 m³/hr — for high-output gas cooking • 1200–1500 m³/hr — for professional/work cooking • Minimum rule: 15× the kitchen volume per hour • Mounting height: 65–75 cm above gas hob (standard)

Industrial Chimney Sizes

🏭  Height by Application • 30–60 meters — small industrial boilers • 60–120 meters — medium power stations • 120–200 meters — large power stations • 200–300 meters — major coal/gas power plants • Tallest (Ekibastuz, Kazakhstan): 420 meters • Height determined by atmospheric dispersion modelling

⭕  Diameter by Output • 0.5–1 meter — small industrial processes • 1–2 meters — medium industrial boilers • 2–5 meters — large power station stacks • 5–10 meters — major generating stations • Wall thickness: 200–400 mm (reinforced concrete) • Liner: acid-resistant brick or polymer coating

Chimney Size Selection Guide

Selecting the correct chimney size for a given heat source requires understanding the relationship between the fireplace or appliance opening and the flue cross-sectional area. This relationship — the flue-to-opening ratio — is the foundation of chimney sizing for residential applications. Getting this ratio correct is the difference between a fireplace that draws perfectly and one that smokes into the room.

The 1/10 Rule for Masonry Fireplaces

For traditional open masonry fireplaces with clay tile flue liners, the standard sizing rule is that the flue’s cross-sectional area should be at least 1/10 of the fireplace opening area. This ratio applies to straight, vertical flues of standard height (15 to 20 feet). Taller flues create a stronger draft and may tolerate a slightly smaller flue area; shorter flues or flues with offsets may require a larger area to compensate for reduced draft.

📐  Flue Size Calculator — The 1/10 Rule: Step 1: Measure the fireplace opening width × height in inches. Example: 36 inches wide × 28 inches tall = 1,008 square inches opening area. Step 2: Divide by 10: 1,008 ÷ 10 = 100.8 square inches required flue area. Step 3: Select the standard flue tile with the area nearest to this: an 8×12 tile has 96 sq in (slightly under—borderline); a 12×12 has 144 sq in (good match). Result: a 12×12 clay tile flue is the correct size for this fireplace. Note: For flues taller than 20 feet, the 1/8 ratio applies. For flues with offsets, increase the area by 15–20%.

Fireplace Opening (W×H)	Required Flue Area	Recommended Flue Size
24″ × 20″ = 480 sq in	48 sq in minimum	8″ × 8″ (64 sq in)
30″ × 24″ = 720 sq in	72 sq in minimum	8″ × 12″ (96 sq in)
36″ × 28″ = 1008 sq in	101 sq in minimum	12″ × 12″ (144 sq in)
42″ × 30″ = 1260 sq in	126 sq in minimum	12″ × 16″ (192 sq in)
48″ × 32″ = 1536 sq in	154 sq in minimum	16″ × 16″ (256 sq in)
Round flue for wood stove	Stove outlet size × 1.25	e.g., 6″ stove = 6″ or 7″ liner

Kitchen Chimney Size for Small Kitchens

Selecting the right kitchen chimney size for a small kitchen involves two separate decisions: the width of the chimney hood (which determines coverage over the cooking surface) and the suction power (which determines how effectively it removes cooking vapours). Getting either of these wrong produces a chimney that is either aesthetically oversized or functionally inadequate. For small kitchens — particularly those under 100 square feet — the chimney width selection is straightforward: match the chimney width to the hob width, or go one size up. A 2-burner hob typically measures 60 cm and is best served by a 60 cm or 75 cm chimney. A 4-burner gas hob at 60 cm is best served by a 75 cm chimney (wider coverage catches vapours that travel beyond the hob edge during vigorous cooking). The 90 cm chimney is overkill for a 60 cm hob in a small kitchen and creates a visual imbalance. For suction power in a small kitchen: multiply the kitchen volume (length × width × height in meters) by 15. A kitchen of 3m × 3m × 2.4m = 21.6 m³ × 15 = 324 m³/hr minimum suction. A 700 m³/hr chimney provides comfortable headroom above this minimum. Do not oversize suction power excessively in small kitchens — a very powerful motor can create negative pressure that pulls gas appliance pilot lights or causes internal doors to slam.

Kitchen Size & Hob Type	Recommended Chimney Specifications
Small kitchen, 2-burner hob	60 cm width · 700 m³/hr suction · ductless acceptable
Small kitchen, 4-burner gas hob	75 cm width · 900 m³/hr suction · ducted preferred
Medium kitchen, 4-burner gas hob	90 cm width · 1000 m³/hr suction · ducted required
Medium kitchen, 5-burner hob	90 cm width · 1200 m³/hr suction · ducted required
Large kitchen, range cooker 90 cm	90–100 cm · 1200–1500 m³/hr · ducted, large duct bore
Open-plan kitchen/living room	90 cm+ · 1500 m³/hr minimum · ducted critical
Professional/work cooking	90–120 cm · 1500+ m³/hr · commercial grade motor

Chimney Cleaning — Complete Guide

Chimney cleaning is one of the most important home maintenance tasks, yet most homeowners consistently neglect it. The consequences of neglecting chimney cleaning are not merely aesthetic — accumulated creosote and soot deposits are the primary cause of chimney fires, and blocked or deteriorated flues allow carbon monoxide bbackdraftinto living spaces. Annual cleaning and inspection of any regularly used chimney are non-negotiable safety requirements.

What Does Chimney Cleaning Involve?

A professional chimney sweep inspection and cleaning involves three phases. First, the chimney sweep visually inspects the accessible portions of the system — the firebox, smoke chamber, damper, and chimney cap — for structural damage, blockages, and the level of creosote. Second, the sweep uses chimney cleaning rods with appropriately sized chimney cleaning brushes to mechanically remove deposits from the full length of the flue, working from either the top or bottom. Third, debris that falls into the firebox and on the smoke shelf is vacuumed and removed. The chimney sweep tools set includes the rod system, brushes, drop cloths, and a high-power vacuum.

Chimney Cleaning Cost

Chimney cleaning costs in the United States vary by region, chimney type, and the level of creosote buildup. Average chimney cleaning rates: a standard Level 1 inspection and cleaning (no significant creosote buildup, no structural concerns) costs $150 to $250. A Level 2 inspection, including a camera inspection of the full floor, costs $250 to $500. Removal of heavy (third-degree) creosote deposits requiring chemical treatment in addition to mechanical cleaning can push chimney cleaning prices to $500 to $1,000 or more. The average cost of chimney cleaning nationally is approximately $200 for a standard annual service. The chimney sweep cost per visit has increased due to the skilled labour shortage in the trades.

Chimney Cleaning Kit — DIY Option

For homeowners comfortable with heights and willing to work on the roof, a chimney-cleaning kit offers a DIY alternative. A standard chimney cleaning kit includes chimney cleaning rods (typically polypropylene or fibreglass, 3 feet per section), a round chimney brush sized to the flue diameter, and basic drop cloths. The chimney cleaning brush should be sized to match the flue interior dimensions precisely — for a 12×12 clay tile flue, use a 12×12 square wire brush; for a 7-inch round liner, use a 7-inch round brush. The cleaning rod kit provides the extension needed to reach from the firebox to the chimney cap. Chimney cleaning rods connect to extend progressively deeper into the flue as sections are added.

Cleaning Item	Specification & Buying Notes
Chimney brush	Must match the flue interior dimensions exactly. Wire brush for clay tile and stainless liner; polypropylene for softer masonry—round or square to match flue shape.
Chimney cleaning rods	Fibreglass is preferred for the balance of rigidity and flexibility—3-foot sections. Buy enough sections to reach full flue height plus 20% extra.
Fireplace drop cloth	Heavy canvas or plastic sheeting to seal the fireplace opening and protect the room from falling soot.
Shop vacuum (HEPA filter)	Standard vacuums distribute fine soot particles through the exhaust. A HEPA-filtered shop vacuum captures sub-micron particles.
Chimney inspection camera	Battery-operated inspection cameras on a flexible rod allow visual assessment of liner condition from below. Essential before investing in chimney repairs.
Creosote remover	Chemical sprays applied to flue walls break down level 1 and 2 creosote deposits between sweepings. Not a substitute for mechanical cleaning.

Chimney Repair — Costs, Methods & Materials

Chimneys deteriorate over time through a combination of thermal cycling (repeated heating and cooling causes brick and mortar to expand and contract), freeze-thaw damage (water that penetrates the masonry expands when frozen), acidic condensation from combustion gases, and general weathering. Understanding which repair type addresses which failure mode — and what it costs — allows homeowners to prioritise work and make informed decisions about contractor estimates.

Repair Type	Average Cost	Urgency Level
Chimney crown repair	$200–$500	High — prevents water entry
Chimney crown sealer only	$50–$150	Medium — preventive maintenance
Chimney repointing	$500–$2,500	High — mortar failure progresses
Chimney tuckpointing	$400–$1,500	High — same as repointing
Chimney liner installation	$2,500–$5,000	Critical — safety system
Chimney relining cost	$2,000–$7,000	Critical — degraded liner = fire risk
Chimney flashing repair	$200–$500	High — roof leak cause
Chimney flue repair	$1,000–$3,500	Critical — cracked flue = CO risk
Chimney brick repair	$400–$2,500	Medium to High
Chimney removal cost	$3,000–$10,000	As scheduled
Chimney rebuild	$5,000–$20,000+	As required
Chimney waterproofing	$300–$800	Medium — preventive
Chimney inspection cost	$100–$500	Annual — preventive

Chimney Crown Repair

The chimney crown is the concrete or mortar cap that covers the top of the masonry chimney between the outer walls and the flue liner. It is one of the most frequently damaged chimney components — exposed to direct rain, freeze-thaw cycles, and UV — and one of the most important to maintain. A cracked chimney crown allows water to enter the masonry structure, causing progressive brick spalling, mortar deterioration, and liner damage. Small cracks (hairline to 1/4 inch) can be sealed with chimney crown sealer — a flexible, paintable sealant applied with a brush that bridges minor cracks and waterproofs the surface. Chimney crown repair cost for sealer-only treatment is $50 to $150 as a DIY project. Complete chimney crown replacement for severely deteriorated crowns costs $200 to $500 for materials and labour. Fix chimney crown issues early — a $100 sealant application prevents a $2,000 masonry repair.

Chimney Liner Installation & Relining

The chimney liner is the most safety-critical component of the chimney system. A damaged, cracked, or absent liner allows combustion gases, including carbon monoxide, to pass through the surrounding masonry into living spaces, and allows the intense heat of a chimney fire to contact combustible framing. Stainless steel chimney liner installation is the most common relining method: a flexible or rigid stainless steel liner is inserted through the full length of the existing flue, providing a clean, code-compliant channel. SS chimney liner and stainless steel chimney liners are available in 316-grade (for gas and oil appliances) and 304-grade options. Fitting a chimney liner is a significant but worthwhile investment — the cost of a chimney liner, $2,500 to $5,000 installed, is a fraction of the cost of rebuilding the chimney or repairing structural fire damage.

Chimney Sealer & Waterproofing

Chimney waterproofing applies a vapour-permeable water repellent to the exterior masonry surfaces, preventing rain penetration while still allowing moisture vapour from inside the chimney to escape outward. Chimney sealer is applied with a brush or sprayer to clean, dry masonry — it does not change the appearance of the brick but dramatically reduces water absorption. Chimney waterproofing costs range from $300 to $800 for a professional treatment, depending on chimney height and surface area. Chimney paint — specifically masonry paint rated for the temperatures involved — can refresh the appearance of brick chimney exteriors and provide an additional moisture barrier.

Essential Chimney Accessories & Components

Beyond the structural chimney itself, a range of accessories and components significantly affect performance, safety, and maintenance requirements. Understanding these components allows homeowners to optimise their chimney system and address specific problems.

Accessory	Function, Types & Buying Guidance
Chimney Cap / Spark Arrestor	Fits over the flue terminal to exclude rain, animals, and debris while functioning as a chimney spark arrestor — preventing sparks from landing on the roof. Stainless steel chimney caps and SS chimney caps are the most durable options; copper chimney caps develop a beautiful patina and last for decades. Metal chimney caps come in single-flue and multi-flue configurations. Attaching a chimney cap: most caps use stainless steel screws to secure it to the flue liner or masonry crown. Chimney cap installation cost: $75–$300, depending on size and material.
Chimney Balloon / Draft Excluder	An inflatable chimney balloonis inserted into the flue above the damper to prevent cold drafts when the fireplace is not in use. A chimney balloon is particularly valuable in older homes with open fireplaces where the damper fits poorly or is absent — it can reduce heating bills significantly in winter. Chimney balloons deflate automatically if the fireplace is accidentally lit with the balloon in place, preventing combustion. Available in a range of sizes to fit standard flue dimensions.
Chimney Chase Cover	The cover plate that sits at the top of a prefabricated chimney chase (the framed box around a metal flue). A damaged or missing chimney chase cover is one of the most significant water entry points in a factory-built fireplace system. Stainless steel chase covers last for decades; galvanised steel covers rust and fail within 5–10 years in wet climates. A chimney chase cap and a chimney chase cover are the same component — replacement costs $150–$400.
Chimney Damper	Controls airflow through the flue. Two types: throat damper (at the firebox throat, the traditional form) and top-sealing damper (mounted at the chimney top, providing a tighter seal than throat dampers). Chimney dampers deteriorate over time — a stuck or missing damper wastes heating energy and allows cold air infiltration. Chimney damper replacement cost: $100–$300 for a throat damper; $150–$500 for a top-sealing damper installed.
Chimney Fan (Draft Inducer)	An electric fan unit mounted at the chimney top that mechanically induces draft when natural convection is insufficient. Chimney fans are the solution for chimneys with poor natural draft due to short height, adverse wind patterns, or neighbouring structures creating downdraft. They are also used in ethanol chimneys, where combustion is absent, but ventilation is still needed. Chimney fan cost: $300–$800, depending on specification.
Chimney Shroud	A decorative and functional cover over the chimney cap, available in copper, aluminium, and steel. A chimney shroud protects the cap from direct wind-driven rain, reduces downdraft, and adds architectural character to the top of the chimney. Particularly valuable in coastal or high-wind locations where direct rain ingress is a consistent problem.
Chimney Flue Liner (Class A Pipe)	Class A chimney pipe is the stainless steel double-wall or triple-wall liner used in prefabricated and metal chimney systems. Class A is rated for all fuel types, including wood, at high temperatures. A stainless steel chimney liner in Class A configuration is appropriate for both new installations and the relining of existing masonry chimneys. Wood stove chimney pipe kits include all components needed for a complete installation, from the stove collar to the chimney cap.

FAQs: Chimney types and sizes

Q: How often does a chimney need to be cleaned? The National Fire Protection Association (NFPA) recommends that chimneys be inspected annually and cleaned as needed. For wood-burning fireplaces and stoves used regularly through a heating season, annual cleaning is the minimum. For occasional use (10 fires per season or fewer), every other year may be adequate — but annual inspection is still recommended to catch structural issues early. Gas fireplaces and appliances produce less creosote but should still be inspected annually for liner integrity and gas seal condition. Industrial chimneys are subject to regulatory inspection schedules specific to the type and volume of emissions. Q: What is a chimney cricket, and when is it required? A chimney cricket (also called a chimney saddle) is a peaked ridge structure built on the high side of the chimney at the roof junction, designed to deflect rainwater and snow away from the chimney-roof intersection and prevent accumulation. Without a cricket, water pools against the back of the chimney and forces its way under the flashing — a major source of roof leaks. Most building codes require a chimney cricket for any chimney wider than 30 inches measured perpendicular to the ridge. They are also recommended for chimneys in heavy-snow climates, regardless of width, because snow accumulation against the chimney increases the load on the flashing and backing. Q: Does a gas fireplace need a chimney? It depends on the type of gas fireplace. A direct-vent gas fireplace draws combustion air from outside and vents exhaust directly back outside through a sealed coaxial pipe — it does not need a traditional chimney, only a short horizontal or vertical vent termination through the wall or roof. A natural-vent (B-vent) gas fireplace requires a vertical flue for draft, but can use a much smaller B-vent metal chimney rather than a full masonry or Class A system. A ventless (vent-free) gas fireplace requires no chimney — it burns at high efficiency, releasing minimal combustion byproducts directly into the room. Ventless fireplaces are restricted or prohibited in some states due to indoor air quality concerns. Always confirm local codes before selecting a ventless appliance. Q: What is the difference between chimney relining and chimney liner installation? Chimney liner installation refers to fitting a liner in a chimney that has none, or in one where the existing liner has been removed. Chimney relining refers to inserting a new liner into a chimney that has an existing liner (typically clay tile) that has deteriorated. Practically, both involve inserting a flexible or rigid stainless steel liner through the full length of the flue — the process is the same. The terms are used interchangeably in most contexts. Chimney relining cost and chimney liner installation cost both reflect the same service: supply and installation of a stainless steel liner with appropriate insulation, top plate, and connection to the appliance. Stainless steel chimney liners are the standard solution — stainless steel chimney liner systems are available in diameters from 4 to 12 inches to fit any residential flue. Q: How do I choose the right kitchen chimney size? Select kitchen chimney width to match or exceed your hob width: 60 cm for 2-burner hobs, 75 cm for standard 4-burner hobs, 90 cm for wide hobs and range cookers. For suction power, calculate your kitchen volume (L × W × H in meters) and multiply by 15 — this gives the minimum m³/hr rating required. For gas cooking (higher heat, more steam and grease), add 20% to this minimum. Ducted models are significantly more effective than ductless/electric models for gas cooking — if external ducting is feasible, always choose ducted. Mounting height should be 65–75 cm above a gas hob and 75–85 cm above an electric hob. Q: What causes a smoky fireplace, and how is it fixed? A smoky fireplace — smoke that enters the room rather than going up the flue — has one of five common causes: flue too cold (a cold chimney has no draft; warm the flue with newspaper before lighting the main fire); flue too short (inadequate height creates insufficient pressure differential — extend or add a chimney fan); flue oversized for the fireplace (too large a flue loses heat and draft; install a flue restrictor plate); negative house pressure (powerful kitchen or bathroom exhaust fans ddepressurizethe house, pulling chimney draft down — crack a window near the fireplace); or blockage in the flue (birds, debris, or collapsed liner — requires professional inspection and cleaning). A chimney balloon fitted when the fireplace is not in use prevents cold-chimney problems by maintaining warmth at the firebox throat. Q: How long does a chimney liner last? Clay tile flue liners in masonry chimneys have a potential lifespan of 50+ years when the chimney is properly maintained and used only with compatible fuels. However, clay tile liners crack under the thermal shock of a chimney fire, from freeze-thaw cycles when water penetrates cracks in the crown or flashing, or from switching to a new appliance with different combustion characteristics. Stainless steel chimney liners (304-grade for gas/oil; 316-grade for higher-temperature wood applications) typically last 15–25 years with proper installation and maintenance. Cast-in-place liner systems last 50+ years. Annual inspection is the only reliable way to identify liner deterioration before it becomes a safety hazard.
