Understanding Foundation Cracks: What Every Homeowner Should Know
Discovering a crack in your foundation wall or floor can trigger immediate worry, but not all foundation cracks signal an impending structural failure. Concrete is an inherently rigid, porous material subjected to intense environmental pressures, meaning almost every home will develop minor cracking over time.
The key to managing foundation health lies in distinguishing between cosmetic surface flaws and true structural warnings. Factors such as natural concrete curing, temperature fluctuations, soil pressure, and moisture shifts constantly act against your home's foundation. Knowing what causes these fractures—and how to identify key markers like crack direction, width, and movement—allows you to take proactive care of your home without unnecessary panic or expenses.
Core Rule of Thumb
Vertical and hairline cracks (under 1/8 inch) are typically non-structural results of concrete settling or curing. Horizontal cracks, stair-step patterns in masonry, or gaps wider than 1/4 inch indicate active pressure or shifting and require immediate professional attention.
Quick Answer
Most foundation cracks are not an emergency. Hairline cracks and small vertical foundation cracks are usually cosmetic, caused by ordinary concrete shrinkage or minor settling, and rarely threaten your home's structure. The cracks that deserve real concern are horizontal foundation cracks, stair-step cracks wider than 1/4 inch, or any crack that is actively growing, offset, or leaking water. When in doubt, measure the width, note the direction, and if it crosses that 1/4 inch threshold - or runs horizontally - call a structural engineer before you call anyone else.
Types of Foundation Cracks
Understanding the type of crack you're dealing with is the most important step in diagnosis. Foundation cracks generally fall into seven recognizable patterns, and the difference between vertical foundation cracks and horizontal foundation cracks alone tells you most of what you need to know about severity.
1. Hairline Cracks
Low SeverityHairline cracks in foundation walls are very thin, superficial surface cracks, often less than 1/16 inch wide. They're typically caused by normal concrete curing shrinkage as the foundation dries and loses moisture over its first year. Usually cosmetic and does not compromise structural integrity. Monitor for change - a hairline crack in a basement wall can often be left alone or sealed with a simple masonry caulk to prevent water intrusion. Are hairline cracks in foundation normal? Yes - they're very common, and in most homes they're not a structural concern.
2. Vertical Cracks
Low to Moderate SeverityVertical foundation cracks run up and down, or at a slight angle, and are the most common type of foundation crack overall. A vertical crack in foundation walls is often caused by the same concrete shrinkage during curing, or by minor, natural foundation settlement as the soil beneath compacts. Are vertical foundation cracks bad? Generally no - most are not a sign of structural failure. While often harmless, vertical cracks in foundation walls should be monitored and sealed to keep water out of the basement. Epoxy injection or a polyurethane sealant are the standard repair methods.
3. Diagonal Cracks
Moderate SeverityDiagonal foundation cracks run at an angle across a wall or slab. A diagonal crack in foundation concrete can indicate uneven settling of the foundation or lateral soil pressure pushing unevenly against one section of the wall. These cracks warrant a closer inspection, especially if the angle steepens near a corner. If the crack is stable and not growing, epoxy injection may be appropriate, though a professional assessment of the underlying cause is still recommended.
4. Horizontal Cracks
High SeverityHorizontal foundation cracks run left-to-right across a foundation wall, and this is among the most serious types of foundation cracks a homeowner can find. A horizontal crack in a foundation wall is the classic sign of excessive lateral soil pressure - sometimes called hydrostatic pressure - pushing against the wall from the outside, which can cause the wall to bow inward over time. Are horizontal cracks in foundation bad? Yes, always - this indicates a structural issue that needs prompt professional attention. Do not attempt to DIY a horizontal crack repair; contact a foundation repair specialist. Repair methods include carbon fiber straps, wall anchors, or steel reinforcements. Are vertical or horizontal cracks worse? Horizontal cracks are worse - they point to active structural failure from soil pressure, while vertical cracks are usually cosmetic.
5. Stair-Step Cracks
Moderate to High SeverityStair step foundation cracks are common in brick or concrete block foundations and follow the mortar joints in a stair-step pattern. They're a sign of differential settlement - meaning one part of the foundation is sinking at a different rate than another. If small and stable, a mason can repair a stair-step crack by repointing the mortar joints. For active settlement, a foundation expert may need to install helical or push piers to stabilize the structure. Are stair-step cracks in a foundation serious? Cracks wider than 1/4 inch are serious structural concerns requiring prompt professional evaluation.
6. Shrinkage Cracks
Low SeverityShrinkage cracks in a foundation are a specific type of hairline or small crack that occurs in poured concrete as it cures and loses moisture in its first months. They usually appear in the middle third of the length of a foundation wall. Not a structural threat - usually cosmetic. Shrinkage cracks can be sealed to prevent water infiltration but rarely need structural repair.
7. Settlement Cracks
Moderate to High SeveritySettlement cracks in a foundation are typically vertical but, unlike shrinkage cracks, extend further up through the structure above the foundation. In block or brick foundations, settlement cracks may follow the mortar joints in a step pattern rather than running straight. Monitor for growth over several months - cracks greater than 1/4 inch are a significant concern and warrant a structural engineer's evaluation.
Is a Foundation Crack Serious? The Fast Diagnostic
Before you dig into every crack type, here's the short version. Is a foundation crack serious? Usually not, if it's a hairline or narrow vertical crack under 1/8 inch. It usually is serious if it's a horizontal crack, a stair-step foundation crack wider than 1/4 inch, or a crack in slab foundation concrete that's spreading, offset, or leaking. Everything in this guide exists to help you tell those two situations apart with confidence instead of guessing.

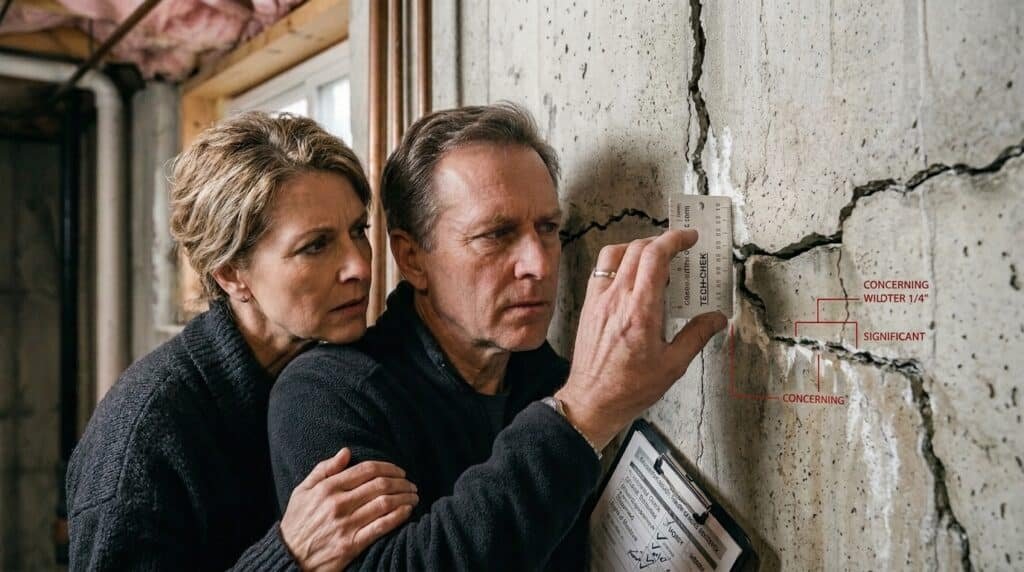

Foundation Crack Width Chart: When Size Matters
A foundation crack width chart is one of the fastest ways to gauge urgency, though direction and pattern still matter more than width alone.
| Crack Width | Concern Level | Typical Action |
|---|---|---|
| Under 1/16 inch (hairline) | Low | Monitor; cosmetic sealant optional |
| 1/16 - 1/8 inch | Low to moderate | Monitor for growth; seal to block water |
| 1/8 - 1/4 inch | Moderate | Professional evaluation recommended |
| Over 1/4 inch (6mm) | High | Structural engineer inspection required |
| Any width, if horizontal | High | Immediate professional assessment |
How wide does a foundation crack have to be to worry? As a general benchmark, cracks wider than 1/4 inch (6mm) are a sign of significant structural stress - but a hairline horizontal crack can be just as concerning as a wide vertical one, so width alone is never the full picture.
When to Worry: Signs of a Serious Foundation Problem
While many cracks are harmless, certain signs point to a more serious structural issue that needs professional attention right away.
| Warning Sign | Why It's Serious |
|---|---|
| Crack is wider than 1/4 inch (6mm) | Exceeds the general threshold for significant structural stress |
| Crack is growing or widening | An active, growing crack indicates ongoing movement |
| One side of the crack is offset | The two sides of the foundation are no longer aligned |
| Horizontal or bowing cracks | The wall is failing under pressure from surrounding soil |
| Crack is leaking water or damp | Water intrusion can lead to mold, rot, and further damage |
| Sticking doors, sloping floors, gaps at frames | Signs of broader foundation movement |
When should I worry about foundation cracks? Worry when a crack is wider than 1/4 inch, runs horizontally, is actively growing, is offset, or is leaking water - especially if it's paired with sticking doors or sloping floors elsewhere in the house.
What Causes Foundation Cracks
Understanding foundation crack causes almost always traces back to one (or several) of these:
- Concrete curing shrinkage cracks - new poured concrete naturally shrinks slightly as it loses moisture during its first year, producing hairline and shrinkage cracks.
- Foundation settlement and soil movement - as soil beneath a foundation compacts or shifts, sections of the foundation can settle unevenly, producing vertical, diagonal, or stair-step cracks.
- Expansive clay soil foundation problems - clay-heavy soil swells when wet and shrinks when dry, applying repeated pressure cycles against foundation walls over time.
- Hydrostatic pressure basement conditions - water building up in the soil around a foundation (often from poor drainage) pushes laterally against basement walls, the leading cause of horizontal cracks and bowing.
- Poor drainage and grading - gutters, downspouts, or ground slope that direct water toward the foundation instead of away from it accelerate both hydrostatic pressure and soil movement.
- Freeze-thaw cycles - water that seeps into small cracks expands as it freezes, gradually widening the crack each winter.
- Tree roots - large roots growing close to a foundation can exert direct pressure on walls and footings.
- Construction defects - inadequate reinforcement, poor concrete mix, or insufficient curing time can all make a foundation more crack-prone from the start.
Why is my foundation cracking? Most foundation cracking is normal concrete shrinkage or minor settlement - but if you're seeing new cracks after heavy rain, drainage and hydrostatic pressure are worth investigating first.
Foundation Settlement Signs and Related Problems
A foundation crack rarely shows up alone. These are the foundation settlement signs and adjacent issues worth checking at the same time:
- Bowing basement walls - a wall that curves inward, even slightly, signals hydrostatic pressure has been building for a while.
- Sticking doors and windows house settling clues - if interior doors or windows have started sticking, the frame has likely shifted as the foundation moved.
- Uneven floors foundation problem signs - floors that visibly slope point to differential settlement under that section of the house.
- Crawl space foundation problems - watch for sagging floor joists, musty odors, or gaps between the foundation wall and sill plate.
- Soil grading around house foundation perimeters - the ground should slope away from your foundation at roughly 6 inches of drop over the first 10 feet.
- French drain foundation systems - redirect groundwater away from the foundation perimeter, one of the most effective fixes for chronic hydrostatic pressure.
- Foundation waterproofing methods - beyond crack sealing, these include exterior membrane coatings, interior drainage systems, and sump pumps.
Foundation Crack Repair Costs (2025-2026)
| Type of Repair | Estimated Cost | Notes |
|---|---|---|
| Minor crack (DIY) | $50 - $200 | Simple sealant or hydraulic cement patch |
| Minor crack (professional) | $250 - $850 per crack | Professional epoxy injection or polyurethane sealing |
| Cosmetic crack sealing | $250 - $800 per crack | Polyurethane or epoxy injection for non-structural cracks |
| Major structural crack | $1,000 - $5,000+ | Larger cracks requiring professional assessment |
| Carbon fiber reinforcement | $600 - $1,200 per strap | Reinforces bowing or cracked walls |
| Full foundation repair | $2,500 - $12,000 | Average residential foundation repair job |
| Complex piering / underpinning | $10,000 - $40,000+ | Severe settlement requiring piers |
How much does it cost to fix a foundation crack? Most single, non-structural crack repairs fall between $250 and $850 when done professionally, while structural repairs involving piering or wall reinforcement can run well into five figures.
What is the average cost of foundation crack repair per linear foot? Linear-foot pricing typically applies to larger structural work like carbon fiber strapping or wall anchor systems rather than single-crack sealing, and can range from roughly $60 to $150 per linear foot depending on the method and region.
Common Foundation Crack Repair Methods
| Method | Best For | How It Works |
|---|---|---|
| Epoxy injection | Narrow, non-structural vertical/diagonal cracks | Low-viscosity epoxy is injected under pressure to seal and bond; works best on dry cracks |
| Polyurethane foam injection | Actively leaking cracks | Flexible foam expands to seal the crack and stop water infiltration |
| Acrylate grout injection | Hairline below-grade cracks | Deep-penetrating grout for a watertight seal |
| Carbon fiber straps | Horizontal or bowing walls | High-strength straps epoxied to the wall to prevent further bowing |
| Helical or push piers | Foundation settlement | Steel piers driven to stable soil to lift and stabilize |
| Wall anchors | Walls bowing from soil pressure | Earth anchors pull the wall back into place |
| Crack stitching | Stepped cracks in masonry | Steel helical bars tie the cracked wall back together |
How long does epoxy injection foundation repair last? A properly executed epoxy injection foundation crack repair can last the lifetime of the structure, since epoxy bonds to concrete - but it only works on stable, non-actively-moving cracks.
A polyurethane foam foundation crack repair, by contrast, prioritizes flexibility and water-sealing over structural bonding - the better choice when a crack is leaking but not spreading. For bowing walls, a carbon fiber foundation crack repair using epoxied straps is generally more cost-effective than full wall replacement.
Foundation crack sealant products fall into three main categories: hydraulic cement (fast-setting, rigid), polyurethane sealant (flexible, water-blocking), and two-part epoxy (rigid, highest bond strength).
How to Fix a Foundation Crack Yourself (DIY-Appropriate Cracks Only)
If your crack is a hairline or narrow, stable, non-structural crack, here's how to fill a small crack in concrete foundation walls or floors:
- Clean the crack - remove loose debris, dust, and any efflorescence with a wire brush and shop vacuum.
- Widen slightly if needed - a small angle grinder can create a shallow V-groove for better sealant adhesion.
- Choose your material - hydraulic cement, polyurethane sealant, or an epoxy injection kit.
- Apply per product instructions - most kits use injection ports sealed with a surface paste, then filled with a caulking gun.
- Cure and monitor - allow full cure time (usually 24-72 hours) and check the repair over the following months.
Can I fix a foundation crack myself or do I need a professional? Hairline and narrow, stable vertical cracks are generally DIY-appropriate with a quality foundation crack repair kit. Horizontal cracks, cracks over 1/4 inch, offset cracks, or anything showing active movement should go to a licensed foundation repair contractor or structural engineer.
New Construction Foundation Cracks
Foundation cracks in new construction are common and usually not a red flag on their own. As poured concrete cures over its first year, some shrinkage and hairline cracking is expected in nearly every home.
Is it normal for a new house to have foundation cracks? Yes - small hairline cracks in new foundation walls, especially in the first 12 months, are typically from curing shrinkage rather than structural failure. However, any horizontal crack, wide crack, or crack appearing very soon after pouring should still be flagged to your builder or a structural engineer.
Foundation Cracks, Home Insurance and Selling Your House
Do foundation cracks affect home insurance? Standard homeowners insurance typically does not cover foundation cracks caused by gradual settlement, poor drainage, or normal wear - these are considered maintenance issues. The Insurance Information Institute has a clear overview of how standard dwelling coverage works, worth reading before you assume either way.
Can I sell my house with foundation cracks? Yes, in most cases. Many homes sell with known, monitored, non-structural foundation cracks, especially with disclosure and documentation. Larger structural cracks may require repair or a price adjustment to satisfy buyer financing or inspection contingencies.
Do all foundation cracks need to be repaired? No. Hairline and small, stable, non-leaking cracks often don't require repair beyond monitoring and basic sealing.
Should I get a foundation crack repair before selling house paperwork is signed? If the crack is structural, getting it repaired with documentation in hand is usually smoother than negotiating a price reduction mid-contract once a buyer's inspector flags it. If you're unsure whether a crack needs disclosure or repair, ASHI's find-an-inspector tool can help you locate a certified home inspector for a full evaluation.
Vertical vs. Horizontal vs. Stair-Step: Quick Comparison
- Stair-step cracks vs. vertical cracks in concrete block foundations: Stair-step cracks follow mortar joints and typically indicate settlement; vertical cracks in block walls more often point to shrinkage.
- Settlement cracks vs. structural foundation cracks: Foundation settling cracks are frequently vertical and tied to soil movement; true structural cracks tend to be wider, horizontal, or actively growing.
- Hairline cracks vs. structural foundation cracks: Hairline cracks are superficial and cosmetic; structural cracks are wider than about 1/8 inch and indicate real movement.
- Concrete block foundation cracks vs. poured concrete cracks: Block foundations tend to show stair-step cracks along mortar joints; poured concrete more commonly cracks vertically or diagonally.
- What is the difference between vertical and horizontal foundation cracks? Vertical cracks are usually caused by shrinkage or settling; horizontal cracks are almost always caused by lateral soil or water pressure - making them more serious.
- Does a cracked driveway mean foundation problems? Not necessarily - a cracked driveway is a separate slab, though it can point to the same soil or drainage issues.
- Do cracks in walls mean foundation problems? Diagonal or stair-step cracks above the foundation often do indicate settlement or movement.
Safety Guidelines for Foundation Crack Inspection and Repair
Read before you inspect or repair anything
Foundation work carries real risks that go beyond the crack itself.
- Never enter a basement or crawl space with a visibly bowing or displaced wall. Evacuate the area and call a structural engineer immediately rather than inspecting it up close.
- Watch for gas lines, electrical conduit, and plumbing near the crack before drilling, grinding, or injecting anything - call 811 (or your local utility locate service) before any exterior digging.
- Wear eye protection and a dust mask when grinding or wire-brushing concrete, since concrete dust contains silica particles harmful to breathe.
- Ventilate the area when using epoxy or polyurethane injection products; keep the space ventilated and avoid open flames nearby.
- If a crack is leaking water and you smell sewage or notice mold growth, treat it as a moisture and air-quality issue as well as a structural one.
- Don't rely on cosmetic sealant to "fix" a structural crack - sealing a horizontal or actively growing crack without addressing the underlying cause can mask a worsening problem.
- When water is actively pooling against the foundation, correct drainage and grading before or alongside any crack repair.
- Get a written structural evaluation before any piering, underpinning, or wall-anchor work begins, and confirm your contractor is licensed and insured for foundation repair specifically.
For a deeper reference on drying and ventilating a basement after a leak, see EPA's mold and moisture control guide.
Frequently Asked Questions
Are foundation cracks normal?
Yes, some cracking is normal. Hairline and small vertical cracks are common results of concrete shrinkage and minor settling. Cracks wider than ¼ inch or horizontal cracks are not normal and require professional evaluation.
Are all foundation cracks serious?
No. Hairline and small vertical cracks are usually cosmetic. Horizontal, stair-step, and actively growing cracks are serious and require professional attention.
Are foundation cracks common?
Yes, especially hairline and small vertical cracks caused by concrete shrinkage and minor settling.
Are cracks in a foundation normal?
Minor cracks are normal. Cracks under 1/8 inch wide that are stable are typically not a concern.
Are settlement cracks normal?
Minor settlement cracks can be normal, especially in newer homes. Cracks wider than ¼ inch or that continue to grow indicate significant movement.
What do foundation cracks look like?
They can appear as vertical, horizontal, diagonal, or stair-step lines. Hairline cracks are very thin; structural cracks are wider — generally over 1/8 inch.
What does a cracked foundation look like?
Visible lines in concrete or block walls, along with displacement, widening gaps, or water seepage.
How to tell if foundation is cracked?
Inspect walls and floors for visible lines, and check for sticking doors, sloping floors, or water stains.
How do you know if your foundation is cracked?
Look for visible cracks in basement walls, floors, or exterior walls, and monitor for changes over a few months.
Is a crack in the foundation bad?
Not always. Hairline cracks are usually harmless. Cracks wider than ¼ inch, horizontal cracks, or growing cracks are signs of a genuinely bad crack.
When to worry about foundation cracks?
When cracks are wider than ¼ inch, horizontal, growing, leaking water, or paired with sticking doors or sloping floors.
What causes a foundation to crack?
Concrete shrinkage, soil settlement, hydrostatic pressure, expansive soil, poor drainage, and freeze-thaw cycles.
What causes foundation cracks?
Concrete curing shrinkage, soil movement, water pressure, tree roots, and construction defects.
Why does my foundation crack?
Normal concrete shrinkage, soil settlement, water pressure, or temperature-driven expansion and contraction.
Why is my foundation cracking?
Likely concrete shrinkage during curing, soil movement, or hydrostatic pressure from poor drainage.
Does a cracked driveway mean foundation problems?
Not necessarily — a cracked driveway is usually separate, but can point to the same soil or drainage issues.
Do cracks in walls mean foundation problems?
Yes, diagonal or stair-step cracks above the foundation often indicate settlement or movement.
Are vertical cracks in foundation bad?
No, vertical cracks are the most common type and are often harmless.
Are horizontal cracks in foundation bad?
Yes, horizontal cracks are among the most serious types, indicating excessive soil pressure.
Are small cracks in foundation normal?
Yes, small hairline cracks under 1/8 inch are normal.
Are vertical foundation cracks bad?
Generally, no. Usually harmless but should be monitored.
Are horizontal foundation cracks always bad?
Yes, always a serious concern requiring professional evaluation.
Are vertical or horizontal cracks worse?
Horizontal cracks are worse — they indicate structural failure from soil pressure.
Are cracks in basement walls normal?
Hairline cracks are normal. Cracks wider than 1/8 inch or horizontal cracks are not.
Are cracks in basement floor normal?
Yes, hairline cracks in basement floors are common, typically from concrete shrinkage.
What causes horizontal cracks in foundation walls?
Excessive lateral soil pressure, hydrostatic pressure, or active wall movement.
How wide does a foundation crack have to be to worry?
As a benchmark, cracks wider than ¼ inch (6mm) signal significant structural stress — direction and activity matter too.
How much does it cost to fix a foundation crack?
Minor professional repairs typically run $250–$850 per crack; structural repairs can reach several thousand dollars or more.
Can I sell my house with foundation cracks?
Yes, in most cases, especially with documented, monitored, non-structural cracks.
Do all foundation cracks need to be repaired?
No. Hairline and small, stable, non-leaking cracks often just need monitoring.
How to tell if a foundation crack is getting worse?
Mark both ends with a pencil and date, or use a crack monitor gauge, and recheck every few weeks.
What is the difference between vertical and horizontal foundation cracks?
Vertical cracks follow shrinkage/settling and are usually low-risk; horizontal cracks result from lateral pressure and are a serious warning sign.
Is it normal for a new house to have foundation cracks?
Yes — small hairline cracks are common during the first year of curing.
How long does epoxy injection foundation repair last?
A correctly performed epoxy injection can last the lifetime of the structure, if the crack is stable.
Can I fix a foundation crack myself or do I need a professional?
Hairline and narrow, stable vertical cracks are typically DIY-appropriate. Horizontal or actively growing cracks need a professional.
What does a stair-step crack in foundation mean?
It typically means one section of the foundation is settling at a different rate than the rest.
How to stop water from coming through a foundation crack?
Polyurethane foam injection is the standard fix; correcting drainage and grading helps prevent recurrence.
Do foundation cracks affect home insurance?
Standard policies typically don't cover cracks from gradual settlement — check your specific policy.
What is a normal amount of foundation cracking?
A few hairline or small vertical cracks under 1/8 inch, especially in a home's first year.
How to fill a small crack in concrete foundation?
Clean the crack, apply hydraulic cement or a polyurethane/epoxy injection kit, and allow full cure time.
Should I get a structural engineer for foundation cracks?
Yes, if the crack is horizontal, wider than ¼ inch, offset, actively growing, or paired with other movement signs.
What do spider web cracks in foundation mean?
Usually surface-level shrinkage or minor curing issues — typically cosmetic.
How to prevent foundation cracks from getting worse?
Improve drainage and grading, keep gutters directing water away from the foundation, and monitor existing cracks.
What is the average cost of foundation crack repair per linear foot?
Roughly $60 to $150 per linear foot for larger structural work, depending on method and region.
Final Thoughts
Most foundation cracks tell a boring story: concrete shrinking as it cures, or a house settling gently into the soil beneath it. The goal isn't to panic at the first hairline crack - it's to know which few warning signs (width over 1/4 inch, horizontal direction, active growth, water leakage) mean it's time to stop monitoring and call a structural engineer. Document what you see, measure it, watch it for a season, and you'll almost always know exactly which category your crack falls into.
